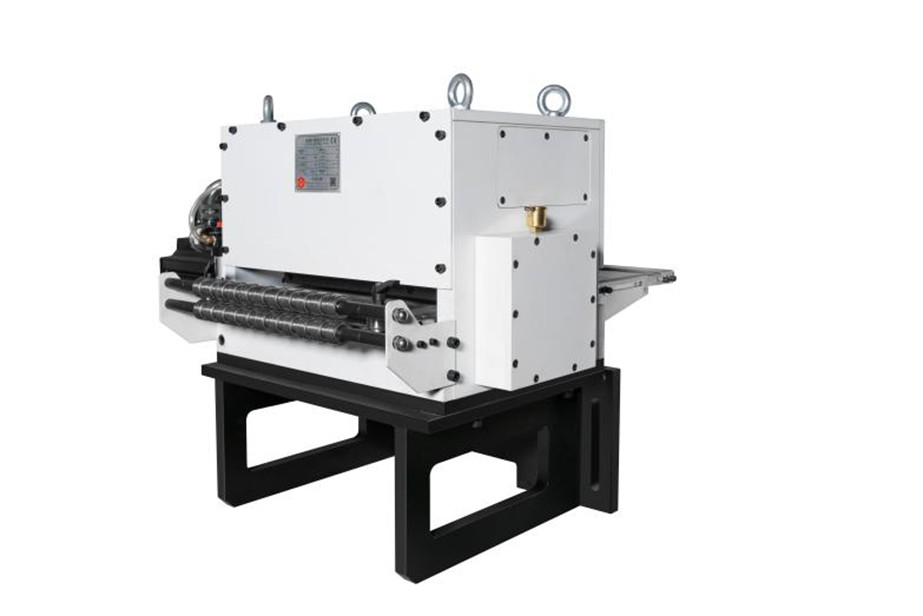

Features:
◎High-precision feeding dimensions: A proprietary feeding and releasing structure combined with a precision-ground four-gear transmission ensures feeding errors are controllable within 0.1mm, and within +/-0.02mm when guided pin positioning is used.
◎Simple operation: Important parameters such as feeding length, feeding speed, material thickness, releasing height, and releasing time can all be set via the touchscreen, saving time and reducing operator skill requirements.
◎High-strength aerospace-grade aluminum body eliminates vibrations during high-speed stamping.
<!doctype html>
Product Usage Parameters — NCK Series
Tip: click any yellow cell to edit. Use checkboxes to select configuration options.
Product Usage Parameters
| Item | NCK-150 | NCK-200 | NCK-250 | NCK-300 | NCK-350 | NCK-400 | NCK-450 | NCK-550 | NCK-650 | NCK-750 |
|---|---|---|---|---|---|---|---|---|---|---|
| Applicable Material Width Material width mm (MAX) | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 550 | 650 | 750 |
| Applicable Material Thickness Material thickness mm (MAX) | 0.2-1.2 | |||||||||
| Feed Times (MAX) Feed times (pieces/min) | 600P/MIN / 400P/MIN | |||||||||
| Feeding Speed Feeding speed | 60M/MIN | |||||||||
| Release Method Release way | Servo drive | |||||||||
Configuration Parameters
Mechanical frame ■ Standard □ Optional – None
Servo control ■ Standard □ Optional – None
Current selection summary: None
