Dual-Servo High-Speed Feeding Line Overview

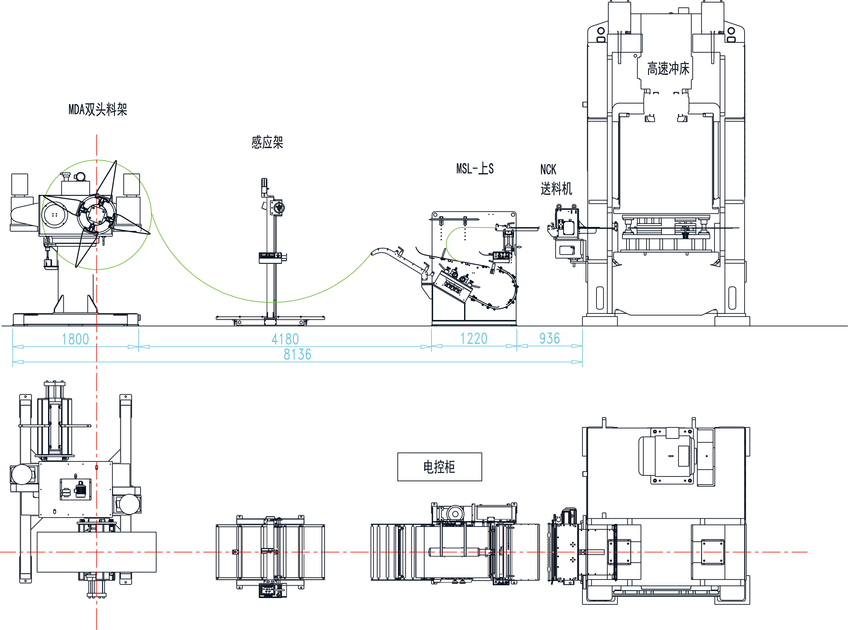

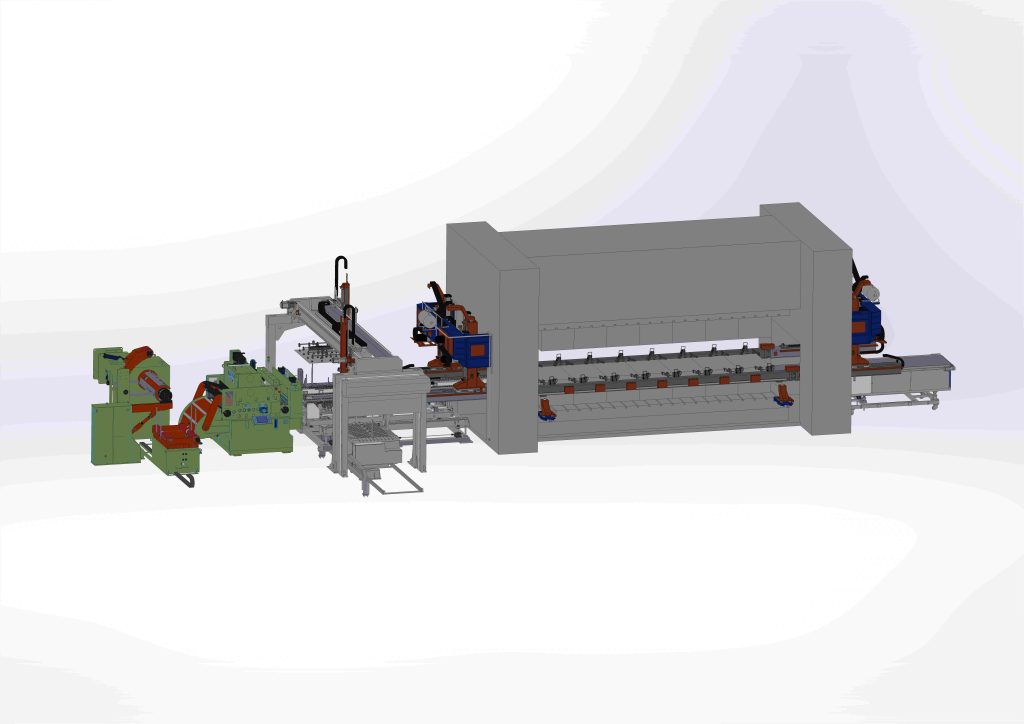

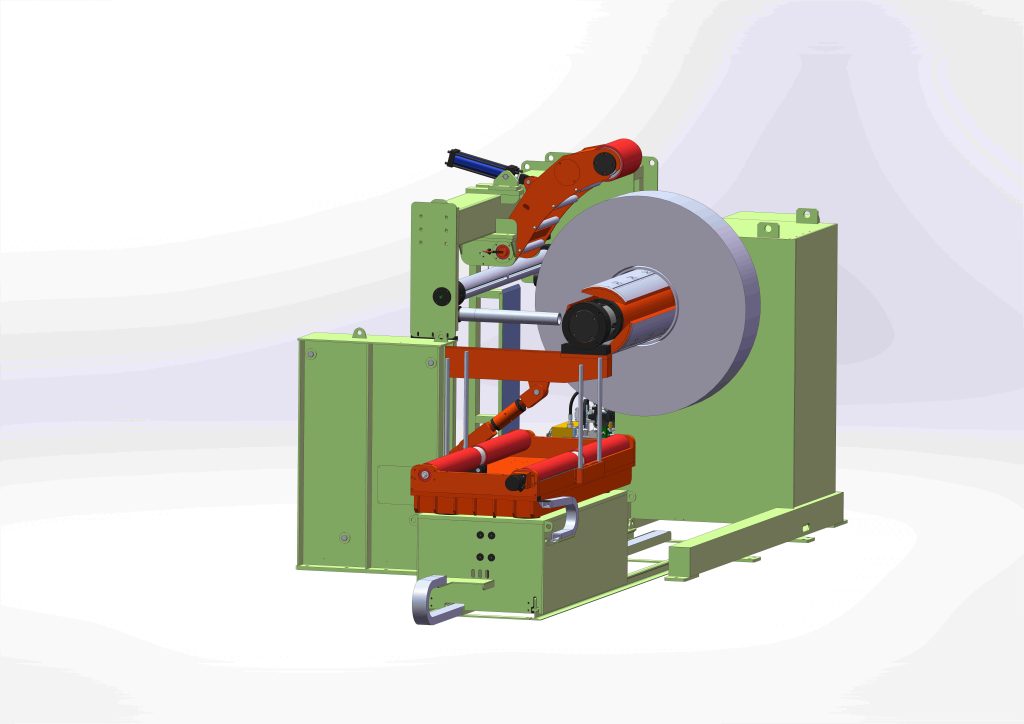

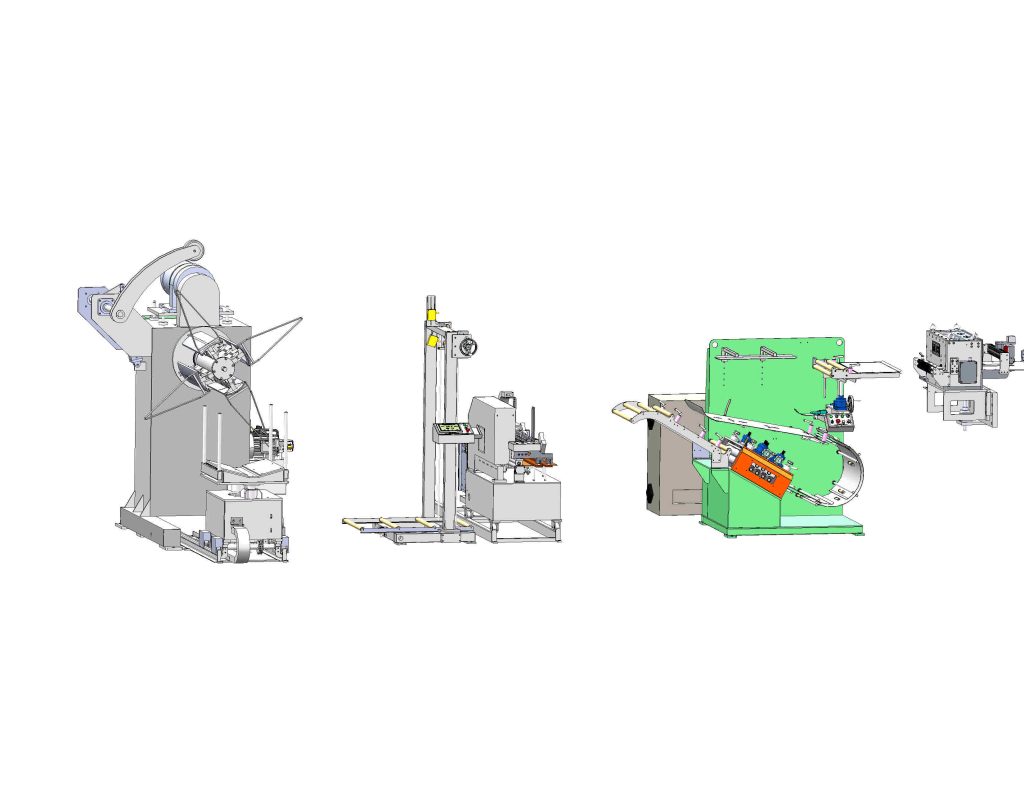

This production line consists of a double-headed material rack, a gantry-type induction rack,
an S-shaped straightener, and a dual-servo high-speed feeder. It is commonly used for
high-speed, precision stamping production of core components in the motor, new energy,

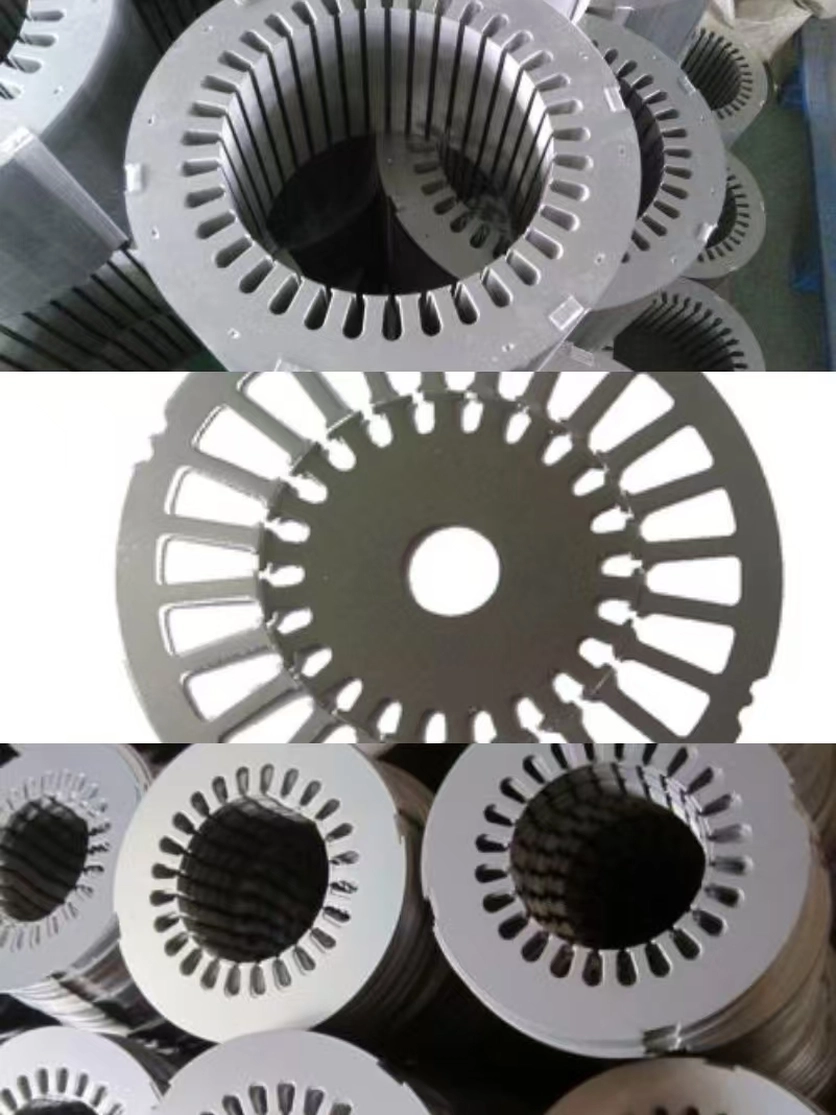

and home appliance industries, including motor cores, stator and rotor laminations,
silicon steel sheets, electrical connectors, and micro-motor brackets.
These products are generally characterized by thin material thickness, fast stamping speed,
high stacking precision requirements, and strict burr control, placing extreme demands on
production cycle stability and positioning consistency.
series of dual-servo high-speed feeders employs an independent servo control system driven
by a precision four-gear transmission.
This design effectively eliminates material deviation, achieving a feeding repeatability
accuracy of ±0.02mm, with a maximum feeding speed of up to
60 meters per minute, significantly reducing accuracy fluctuations caused
by equipment inertia.

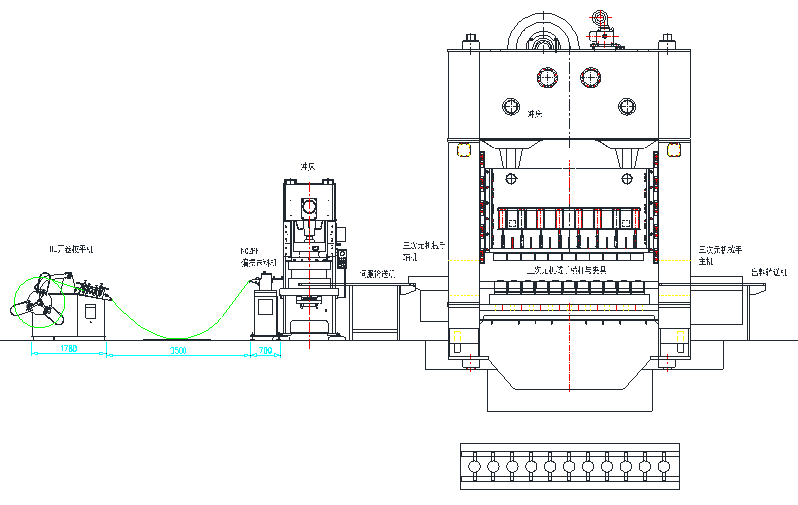

Diagram
